Setting up ProFTPD on Debian Wheezy with Explicit FTPS and Alternate mod_auth_file File

Not a real step-by-step guide, but more like notes for future references.

Revision history (dd/mm/yy):

09/09/2014 – minor changes to proftpd.conf.

17/10/2014 – removed SSLv3 from tls.conf.

Software

Software used in this article:

  1. Debian Wheezy
  2. ProFTPD 1.3.4a
  3. OpenSSL 1.0.1e

Pre-Installation Notes

NOTE 1: our server is behind NAT, therefore we’ll use a passive FTP mode to connect from outside. Mikrotik router’s NAT configuration (SSH method) is provided.

NOTE 2: we’ll be using mod_auth_file for FTP authentication.

NOTE 3: we’ll use “DefaultServer on” with no additional VirtualHosts.

Installation

Install openssl and proftpd (choose standalone version):

# apt-get update && apt-get install proftpd openssl
[...]
Run proftpd: standalone
[...]

Configuration

Optional, but highly recommended: familiarise yourself with ProFTPD Configuration Directive List.

We’ll create a new directory for FTP uploads. We will also prevent other users from removing or renaming a file in the directory unless they own the file or the directory:

# mkdir -m 1777 /ftp

Double-check permissions:

# ls -ld /ftp
drwxrwxrwt 2 root root 4096 Jan 25 21:36 /ftp/

Navigate to the proftpd installation directory:

# cd /etc/proftpd

Backup the default configuration files first:

# cp ./proftpd.conf ./proftpd.conf.$(date +%F)
# cp ./tls.conf ./tls.conf.$(date +%F)
# cp ./virtuals.conf ./virtuals.conf.$(date +%F)

Create a new folder to store an FTP authentication file as well as prevent world from accessing it:

# mkdir -m 0770 ./auth
# chown proftpd ./auth

Check permissions:

# ls -ld ./auth
drwxrwx--- 2 proftpd root 4096 Jan 26 18:14 ./auth/

List the five biggest UIDs that are already in use:

# cat /etc/passwd | cut -d: -f3 | sort -n | tail -n 5
1001
1002
1003
1004
65534

Create a new FTP user for sandy with UID of 1100 (not in use):

# ftpasswd --passwd --file=/etc/proftpd/auth/users.passwd --name=sandy --home=/ftp \
--shell=/bin/false --uid=1100 --gid=1100

Consult ftpasswd man page for more info if needed.

Let’s see the auth file’s content:

# cat ./auth/users.passwd
sandy:$1$a3lD4ThisIsNotARealPassword6m5Z2:1100:1100::/ftp:/bin/false

Make file readable for proftpd user:

# chown proftpd /etc/proftpd/auth/users.passwd

Create a new folder to store SSL certificates:

# mkdir /etc/proftpd/ssl

Generate an SSL certificate for FTPS:

# openssl req -new -x509 -days 1825 -sha256 -nodes -out ./ssl/server.crt \
-keyout ./ssl/server.key
Generating a 2048 bit RSA private key
...........+++
.................................................................................+++
writing new private key to './server.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:GB
State or Province Name (full name) [Some-State]:Outer Space
Locality Name (eg, city) []:Nibiru
Organization Name (eg, company) [Internet Widgits Pty Ltd]:ftp.example.com
Organizational Unit Name (eg, section) []:
Common Name (e.g. server FQDN or YOUR name) []:ftp.example.com
Email Address []:[email protected]

Make SSL certificates non world-readable:

# chmod 0440 ./ssl/*

proftpd.conf

Here’s our proftpd.conf configuration:

# cat ./proftpd.conf
#/etc/profptd/proftpd.conf

#######################################################################
# Server Config                                                       #
#######################################################################

Include			/etc/proftpd/modules.conf
Include 		/etc/proftpd/tls.conf

ServerName		"Private FTP Server"
ServerType		standalone
ServerAdmin		[email protected]
DefaultServer		on
AccessGrantMsg		"User %u logged in."

# keep the required auth module only
AuthOrder		mod_auth_file.c

UseReverseDNS		off
RequireValidShell       off

# we want the main server instance to listen on a specific IP
DefaultAddress          localhost
Port			21
PassivePorts            64000 65000

# never ever run as root
User			proftpd
Group			nogroup

# pid file
ScoreboardFile		/var/run/proftpd.score

# for DOS prevention, only works in standalone mode
MaxInstances		20

# for passive FTP mode
MasqueradeAddress	54.X.Y.Z

MultilineRFC2228	on
ShowSymlinks		off
UseIPv6			off
DefaultTransferMode	binary

# DebugLevel only applies to SystemLog files
DebugLevel              0
TransferLog		/var/log/proftpd/xferlog
SystemLog		/var/log/proftpd/proftpd.log
WtmpLog                 off

#######################################################################
# Global Config                                                       #
#######################################################################

<Global>
 RootLogin		off
 AuthPAM                off
 AuthUserFile           /etc/proftpd/auth/users.passwd

 # jailing
 DefaultRoot		/ftp
 #DefaultChdir		/ftp/shared

 # give out minimal information
 ServerIdent		on "Private FTP Server"
 IdentLookups		off

 # no welcome message until user has authenticated
 DeferWelcome           off
 DisplayLogin		/etc/proftpd/welcome.msg
 DisplayConnect         /etc/issue.net

 TimeoutLogin		120
 TimeoutNoTransfer	300
 TimeoutStalled		3600
 TimeoutIdle		600

 MaxClients 		5 "Sorry, ftp server has reached its maximum user limit (%m)"
 MaxClientsPerUser 	5 "Sorry, no more than %m connections per user."

 # restrict sandy's uploads to 1 gigabyte per file
 MaxStoreFileSize       1 Gb user sandy

 # allow unlimited upload and download size for everyone else
 MaxStoreFileSize       *
 MaxRetrieveFileSize    *

 MaxLoginAttempts	3
 DenyFilter		\*.*/

 Umask			022
 AllowOverwrite		on
 AllowOverride		off

 # allow to resume not only the downloads, but the uploads too
 AllowRetrieveRestart	on
 AllowStoreRestart	on

 RequireValidShell	off
</Global>

# Delay engine reduces impact of the so-called Timing Attack
<IfModule mod_delay.c>
 DelayEngine on
</IfModule>

<Limit SITE_CHMOD>
 DenyAll
</Limit>

#######################################################################
# VirtualHosts #
#######################################################################

# for future use
Include /etc/proftpd/virtuals.conf

tls.conf

Here’s our tls.conf configuration:

# cat ./tls.conf
<IfModule mod_tls.c>
TLSEngine on
TLSRequired on
TLSProtocol TLSv1
TLSRSACertificateFile /etc/proftpd/ssl/server.crt
TLSRSACertificateKeyFile /etc/proftpd/ssl/server.key
TLSVerifyClient off
TLSOptions AllowClientRenegotiations NoSessionReuseRequired
TLSLog /var/log/proftpd/tls.log
</IfModule>

virtuals.conf

The virtuals.conf file contains no virtual hosts:

# cat ./virtuals.conf
# this file is empty

welcome.msg

Here’s our welcome.msg configuration:

# cat ./welcome.msg
Welcome %U from %R.
You are user number %N of %M allowed.
This is a private FTP system - no anonymous logins.
You will be disconnected after 10 minutes of inactivity.

Restart ProFTPD Daemon

# service proftpd restart
[ ok ] Stopping ftp server: proftpd.
[....] Starting ftp server: proftpdlocal proftpd[5395] 127.0.0.1: 127.0.0.1:21 masquerading as 54.X.Y.Z
. ok

Configure NAT on Mikrotik RouterOS

TCP ports 21 and 64000-65000 need to be forwarded on Mikrotik router (as well as opened on iptables firewall) for public access. Do via SSH:

[[email protected]] > ip firewall nat
[[email protected]] /ip firewall nat> add chain=dstnat dst-address=54.X.Y.Z protocol=tcp dst-port=21 action=dst-nat to-addresses=10.X.Y.Z to-ports=21
[[email protected]] /ip firewall nat> add chain=dstnat dst-address=54.X.Y.Z protocol=tcp dst-port=64000-65000 action=dst-nat to-addresses=10.X.Y.Z to-ports=64000-65000

Connect with FileZilla Client from a Public Network

Connection details:
Host: ftpes://ftp.example.com
Username: sandy
Passwd: **********
Port: 21

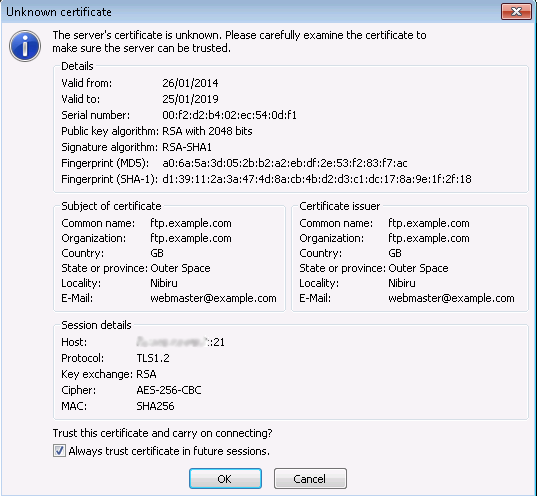

We’ll be asked to accept the self-signed SSL certificate:

FileZilla client log:

Status: Resolving address of ftp.example.com
Status: Connecting to 54.X.Y.Z:21...
Status: Connection established, waiting for welcome message...
Response: 220 Private FTP Server
Command: AUTH TLS
Response: 234 AUTH TLS successful
Status: Initializing TLS...
Status: Verifying certificate...
Command: USER sandy
Status: TLS/SSL connection established.
Response: 331 Password required for sandy
Command: PASS ************
Response: 230-Welcome sandy from 91.X.Y.Z.
Response: 230-You are user number 1 of 10 allowed.
Response: 230-This is a private FTP system - no anonymous logins.
Response: 230-You will be disconnected after 10 minutes of inactivity.
Response: 230 User sandy logged in.
Command: OPTS UTF8 ON
Response: 200 UTF8 set to on
Command: PBSZ 0
Response: 200 PBSZ 0 successful
Command: PROT P
Response: 200 Protection set to Private
Status: Connected
Status: Retrieving directory listing...
Command: PWD
Response: 257 "/" is the current directory
Status: Directory listing successful

Bugs

When installing ProFTPD on Ubuntu 14.04, you may notice the service being killed when cron runs logrotate:

ProFTPD killed (signal 15)
ProFTPD 1.3.5rc3 standalone mode SHUTDOWN

The workaround is to open the /etc/init.d/proftpd file and change the following line:

start-stop-daemon --stop --signal $SIGNAL --quiet --pidfile "$PIDFILE"

to:

start-stop-daemon --stop --signal $SIGNAL --retry 1 --quiet --pidfile "$PIDFILE"

You can test if ProFTPD is working after logrotate by running:

# logrotate -vf /etc/logrotate.conf
