Install and Configure an OpenLDAP Server with SSL on Debian Wheezy

Setting up an OpenLDAP server on Debian Wheezy.

Software

Software used in this article:

  1. Debian Wheezy
  2. OpenLDAP 2.4.31
  3. Gnutls-bin 3.0.22

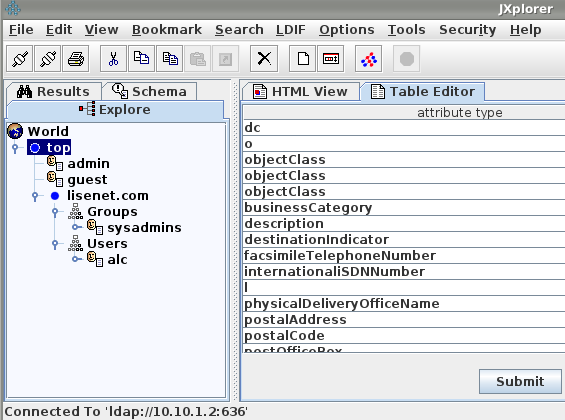

  4. JXplorer 3.2.2

Installation

Install the slapd package answering the prompt to set an admin user password:

# apt-get update && apt-get install slapd ldap-utils

The ldap-utils package contains the following tools:

  1. ldapsearch – search for and display entries.
  2. ldapmodify – modify an entry.
  3. ldapadd – add a new entry.
  4. ldapdelete – remove and entry.
  5. ldapmodrdn – rename an entry.
  6. ldappasswd – change a password.

The latest version of slapd (v2.4.31 on Debian) only asks for an admin user password and none of the configuration details. To configure slapd, do:

# dpkg-reconfigure -p low slapd

Our answers:

  1. Omit OpenLDAP server configuration? No
  2. DNS domain name: top
  3. Organization name: top
  4. Administrator password: passwd
  5. Confirm password: passwd
  6. Database backend to use: HDB
  7. Do you want the database to be removed when slapd is purged? No
  8. Move old database? Yes
  9. Allow LDAPv2 protocol? No

Open /etc/default/slapd and make sure the following line exists (feel free to listen on IPv6 if needed):

SLAPD_SERVICES="ldap://0.0.0.0:389/ ldaps://0.0.0.0:636/ ldapi:///"

Here’s how our /etc/default/slapd looks like:

# grep -ve "^#" -ve "^$" /etc/default/slapd
SLAPD_CONF=
SLAPD_USER="openldap"
SLAPD_GROUP="openldap"
SLAPD_PIDFILE=
SLAPD_SERVICES="ldap://0.0.0.0:389/ ldaps://0.0.0.0:636/ ldapi:///"
SLAPD_SENTINEL_FILE=/etc/ldap/noslapd
SLAPD_OPTIONS=""

Check initial configuration:

# slapcat
dn: dc=top
objectClass: top
objectClass: dcObject
objectClass: organization
o: top
dc: top
structuralObjectClass: organization
entryUUID: 7953d532-d04f-1033-8bc6-e18a672615bb
creatorsName: cn=admin,dc=top
createTimestamp: 20140914113904Z
entryCSN: 20140914113904.377393Z#000000#000#000000
modifiersName: cn=admin,dc=top
modifyTimestamp: 20140914113904Z

dn: cn=admin,dc=top
objectClass: simpleSecurityObject
objectClass: organizationalRole
cn: admin
description: LDAP administrator
userPassword:: e1AAAAAAQnZSS3JOTnVBbGpmd0VTZ0l3MjVDays=
structuralObjectClass: organizationalRole
entryUUID: 796778b2-d04f-1033-8bc7-e18a672615bb
creatorsName: cn=admin,dc=top
createTimestamp: 20140914113904Z
entryCSN: 20140914113904.506110Z#000000#000#000000
modifiersName: cn=admin,dc=top
modifyTimestamp: 20140914113904Z

Create a new directory to store custom configuration files:

# mkdir /etc/ldap/ldifconfigs
# cd /etc/ldap/ldifconfigs

OpenLDAP Configuration

Configure LDAPS

Debian wiki recommends to backup LDAP server configuration before trying to configure LDAPS, because breaking the configuration with the “cn=config” style would prevent the LDAP server to restart. We just started from scratch, so there is nothing much we can actually backup.

Open /etc/default/slapd and enable LDAPS (if not yet done already):

SLAPD_SERVICES="ldap://0.0.0.0:389/ ldaps://0.0.0.0:636/ ldapi:///"

Our SSL certificates and permissions:

# ls -ld /etc/ssl/webserver/
drwxr-x--- 2 root openldap 4096 Jul 24 12:20 /etc/ssl/webserver/
# ls -l /etc/ssl/webserver/*
-rw-r--r-- 1 root root     1265 Jul 24 13:05 /etc/ssl/webserver/server-ca.crt
-rw-r--r-- 1 root root     1265 Jul 24 13:05 /etc/ssl/webserver/server.crt
-rw-r----- 1 root openldap 1675 Jul 24 13:05 /etc/ssl/webserver/server.key

If you generated your certificates using OpenSSL, you’re going to run into problems. Debian switched over to using gnutls a while ago, and it doesn’t play nice with OpenSSL certificates.

You can generate your own self-signed certificates with a certtool. Install gnutls-bin package:

# apt-get install gnutls-bin

Generate a new self-signed key:

# certtool --generate-privkey --outfile server.key
# certtool --generate-self-signed --load-privkey server.key --outfile server.crt

Create an ldif file to add the certificate sections to the OpenLDAP server. You may want to comment out TLSCACertificateFile if using a self-signed certificate.

# cat > ./ldaps.ldif << EOF
dn: cn=config
add: olcTLSCACertificateFile
olcTLSCACertificateFile: /etc/ssl/webserver/server-ca.crt
-
add: olcTLSCertificateFile
olcTLSCertificateFile: /etc/ssl/webserver/server.crt
-
add: olcTLSCertificateKeyFile
olcTLSCertificateKeyFile: /etc/ssl/webserver/server.key
EOF

Add attributes to “cn=config”:

# ldapmodify -Y EXTERNAL -H ldapi:/// -f ./ldaps.ldif

Verify:

# ldapsearch -Y EXTERNAL -H ldapi:/// -b cn=config -s base|grep TLS
SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
olcTLSCACertificateFile: /etc/ssl/webserver/server-ca.crt
olcTLSCertificateFile: /etc/ssl/webserver/server.crt
olcTLSCertificateKeyFile: /etc/ssl/webserver/server.key

In case you’re stuck with a broken OpenLDAP service, you may need to start from scratch:

# dpkg-reconfigure slapd

Disable SSLv3

Create an ldif with the following content:

# cat > ./nosslv3.ldif << EOF
dn: cn=config
add: olcTLSCipherSuite
olcTLSCipherSuite: SECURE256:-VERS-SSL3.0
EOF

Modify OpenLDAP configuration:

# ldapmodify -Y EXTERNAL -H ldapi:/// -f ./nosslv3.ldif

Verify. You need to have a gnutls-bin package installed.

$ gnutls-cli-debug -p 636 localhost | head
Resolving 'localhost'...
Connecting to '::1:636'...
Checking for SSL 3.0 support... no
Checking whether %COMPAT is required... no
Checking for TLS 1.0 support... yes
Checking for TLS 1.1 support... yes
Checking fallback from TLS 1.1 to... N/A
Checking for TLS 1.2 support... yes
Checking whether we need to disable TLS 1.0... N/A
Checking for Safe renegotiation support... yes

You can also use Nmap to check for supported ciphers:

$ nmap -Pn -p T:636 --script ssl-enum-ciphers localhost

Starting Nmap 6.00 ( http://nmap.org ) at 2014-10-18 19:41 GMT
Nmap scan report for localhost (127.0.0.1)
Host is up (0.00029s latency).
Other addresses for localhost (not scanned): 127.0.0.1
PORT    STATE SERVICE
636/tcp open  ldapssl
| ssl-enum-ciphers:
|   TLSv1.0
|     Ciphers (6)
|       TLS_RSA_WITH_3DES_EDE_CBC_SHA - strong
|       TLS_RSA_WITH_AES_128_CBC_SHA - strong
|       TLS_RSA_WITH_AES_256_CBC_SHA - unknown strength
|       TLS_RSA_WITH_CAMELLIA_128_CBC_SHA - unknown strength
|       TLS_RSA_WITH_CAMELLIA_256_CBC_SHA - unknown strength
|       TLS_RSA_WITH_RC4_128_SHA - strong
|     Compressors (1)
|       NULL
|   TLSv1.1
|     Ciphers (6)
|       TLS_RSA_WITH_3DES_EDE_CBC_SHA - strong
|       TLS_RSA_WITH_AES_128_CBC_SHA - strong
|       TLS_RSA_WITH_AES_256_CBC_SHA - unknown strength
|       TLS_RSA_WITH_CAMELLIA_128_CBC_SHA - unknown strength
|       TLS_RSA_WITH_CAMELLIA_256_CBC_SHA - unknown strength
|       TLS_RSA_WITH_RC4_128_SHA - strong
|     Compressors (1)
|       NULL
|   TLSv1.2
|     Ciphers (8)
|       TLS_RSA_WITH_3DES_EDE_CBC_SHA - strong
|       TLS_RSA_WITH_AES_128_CBC_SHA - strong
|       TLS_RSA_WITH_AES_128_CBC_SHA256 - strong
|       TLS_RSA_WITH_AES_256_CBC_SHA - unknown strength
|       TLS_RSA_WITH_AES_256_CBC_SHA256 - unknown strength
|       TLS_RSA_WITH_CAMELLIA_128_CBC_SHA - unknown strength
|       TLS_RSA_WITH_CAMELLIA_256_CBC_SHA - unknown strength
|       TLS_RSA_WITH_RC4_128_SHA - strong
|     Compressors (1)
|       NULL
|_  Least strength = unknown strength

Nmap done: 1 IP address (1 host up) scanned in 2.55 seconds

Set Password Hash to SSHA

Create an ldif file with the following content:

# cat > ./passwordhash.ldif << EOL
dn: cn=config
add: olcPasswordHash
olcPasswordHash: {SSHA}
EOL

Modify OpenLDAP configuration:

# ldapmodify -Y EXTERNAL -H ldapi:/// -f ./passwordhash.ldif

Verify:

# ldapsearch -Y EXTERNAL -H ldapi:/// -b cn=config|grep SSHA
SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
olcPasswordHash: {SSHA}
olcRootPW: {SSHA}NRBAhLr9Ae0SveMOD8MdiOb1sOmEteSt

Enable All Logging (Optional)

To enable all (verbose) logging, which is useful for troubleshooting problems, create an ldif file with the following content:

# cat > ./logging.ldif << EOF
dn: cn=config
replace: olcLogLevel
olcLogLevel: -1
EOF

Modify OpenLDAP configuration:

# ldapmodify -Y EXTERNAL -H ldapi:/// -f ./logging.ldif

Verify:

# ldapsearch -Y EXTERNAL -H ldapi:/// -b cn=config -s base|grep -i LOG
SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
olcLogLevel: -1

To disable logging, change the “olcLogLevel” value to “0” and run the ldapmodify command again:

dn: cn=config
replace: olcLogLevel
olcLogLevel: 0

Check the OpenLDAP doc for other available log levels.

Add a Guest Account for Read-only Access

Create an ldif file to add a new guest account to the OpenLDAP server:

# cat > ./guest.ldif << EOF
dn: cn=guest,dc=top
objectClass: simpleSecurityObject
objectclass: organizationalRole
description: LDAP Read-only Access
userPassword:
EOF

See what would be done:

# ldapadd -nx -f ./guest.ldif
!adding new entry "cn=guest,dc=top"

Add a new guest account:

# ldapadd -x -D cn=admin,dc=top -W -f ./guest.ldif

Create a password for the guest account:

# ldappasswd -x -D cn=admin,dc=top -W -S cn=guest,dc=top
New password:
Re-enter new password:
Enter LDAP Password:

Add a New Domain

Create an ldif file to add a new lisenet.com domain to the OpenLDAP server:

# cat > ./lisenet.com.ldif << EOF
dn: dc=lisenet.com,dc=top
o: lisenet.com
dc: lisenet.com
objectClass: dcObject
objectClass: organization

dn: ou=Users,dc=lisenet.com,dc=top
objectClass: organizationalUnit
ou: Users

dn: ou=Groups,dc=lisenet.com,dc=top
objectClass: organizationalUnit
ou: Groups

dn: cn=sysadmins,ou=Groups,dc=lisenet.com,dc=top
gidNumber: 1000
objectClass: posixGroup
cn: sysadmins
EOF

Test to see what would be done:

# ldapadd -nx -f ./lisenet.com.ldif
!adding new entry "dc=lisenet.com,dc=top"

!adding new entry "ou=Users,dc=lisenet.com,dc=top"

!adding new entry "ou=Groups,dc=lisenet.com,dc=top"

!adding new entry "cn=sysadmins,ou=Groups,dc=lisenet.com,dc=top"

Add a new domain:

# ldapadd -x -D cn=admin,dc=top -W -f ./lisenet.com.ldif

Add a New User to Domain

Create an ldif file to add a new “alc” user account to the OpenLDAP server:

# cat > ./user.ldif << EOF
dn: uid=alc,ou=Users,dc=lisenet.com,dc=top
uid: alc
uidNumber: 1000
gidNumber: 1000
cn: Alice
sn: E
objectClass: posixAccount
objectclass: organizationalPerson
loginShell: /sbin/nologin
homeDirectory: /home/alc
EOF

Test to see what would be done:

# ldapadd -nx -f ./user.ldif
!adding new entry "uid=alc,ou=Users,dc=lisenet.com,dc=top"

Add a new user “alc” to the lisenet.com domain:

# ldapadd -x -D cn=admin,dc=top -W -f ./user.ldif

Create user’s password:

# ldappasswd -x -D cn=admin,dc=top -W -S uid=alc,ou=users,dc=lisenet.com,dc=top
New password:
Re-enter new password:
Enter LDAP Password:

Limit Access to the OpenLDAP Database

The first ACL determines who can authenticate against the OpenLDAP server and change password (shadowLastChange).

  1. Admin account (rootDN) has complete access.
  2. Guest account can read-only.
  3. Anonymous users are provided access to the userPassword attribute for the initial connection to occur.
  4. All users have read access to their passwords due to “by self write” permissions.

Create an ldif file with the following content:

# cat > ./acl.ldif << EOL
dn: olcDatabase={1}hdb,cn=config
changetype: modify
replace: olcAccess
olcAccess: {0}to attrs=userPassword,shadowLastChange
  by dn="cn=admin,dc=top" write
  by dn="cn=guest,dc=top" read
  by self write
  by anonymous auth
  by * none
olcAccess: {1}to dn.base="" by * read
olcAccess: {2}to *
  by dn="cn=admin,dc=top" write
  by dn="cn=guest,dc=top" read
  by self write
  by users read
  by anonymous auth
  by * none
EOL

And modify OpenLDAP configuration:

# ldapadd -Y EXTERNAL -H ldapi:/// -f ./acl.ldif
SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
modifying entry "olcDatabase={1}hdb,cn=config"

Verify:

# ldapsearch -Q -LLL -Y EXTERNAL -H ldapi:/// -b \
> cn=config '(olcDatabase={1}hdb)' olcAccess
dn: olcDatabase={1}hdb,cn=config
olcAccess: {0}to attrs=userPassword,shadowLastChange by dn="cn=guest,dc=top" w
 rite by dn="cn=guest,dc=top" read by self write by anonymous auth by * none
olcAccess: {1}to dn.base="" by * read
olcAccess: {2}to *  by dn="cn=admin,dc=top" write by dn="cn=guest,dc=top" read
  by self write by users read by anonymous auth by * none

Search for LDAP User

$ ldapsearch -D "cn=guest,dc=top" -x -W -b "uid=alc,ou=Users,dc=lisenet.com,dc=top" -P 3 -h localhost
# extended LDIF
#
# LDAPv3
# base  with scope subtree
# filter: (objectclass=*)
# requesting: ALL
#

# alc, Users, lisenet.com.top
dn: uid=alc,ou=Users,dc=lisenet.com,dc=top
uid: alc
uidNumber: 1000
gidNumber: 1000
cn: Alice
sn: E
objectClass: posixAccount
objectClass: organizationalPerson
loginShell: /sbin/nologin
homeDirectory: /home/alc
userPassword:: e1NTSEF9NDg0NFhiVGZuOG[...]=

# search result
search: 2
result: 0 Success

# numResponses: 2
# numEntries: 1

LDAP Client: JXplorer

JXplorer is an open source LDAP browser. It should run on any java supporting operating system.

# apt-cache depends jxplorer
jxplorer
 |Depends: openjdk-6-jre
  Depends: sun-java6-jre
  Depends: javahelp2
  Depends: junit
  Depends: java-wrappers

Install JXplorer:

# apt-get install jxplorer

Connect to the OpenLDAP server via SSL protocol:

You show now be able to see an LDAP tree:

Configure Simple LDAP Plugin for WordPress

Install php5-ldap package:

# apt-get install php5-ldap

Plugin settings:

  1. BaseDN: ou=Users,dc=lisenet.com,dc=top
  2. Domain Controller: localhost
  3. Ldap Login Attribute: uid
  4. LDAP Port: 389
  5. LDAP Version: 3

Squid OpenLDAP Authentication

The following lines do the job on the /etc/squid3/squid.conf file:

# the below is one long line
auth_param basic program /usr/lib/squid3/squid_ldap_auth -v 3 -b "ou=Users,dc=lisenet.com,dc=top" -D "cn=guest,dc=top" -w passwd localhost

acl ldap-auth proxy_auth REQUIRED

http_access allow ldap-auth
http_access deny all

Related Posts

Convert OpenLDAP Schema to LDIF

Configure Squid for OpenLDAP Authentication

Setting Up ProFTPd with OpenLDAP Authentication on Debian Wheezy

References

https://wiki.debian.org/LDAP/OpenLDAPSetup
https://ezunix.org/index.php?title=Set_up_LDAP_Server_on_Debian_Linux
http://www.linuxlasse.net/linux/howtos/OpenLDAP_Server,_authenticate_linux_users
http://labs.opinsys.com/blog/2010/01/27/setting-up-openldap-on-ubuntu-10-04-alpha2/

Leave a Reply

Your email address will not be published. Required fields are marked *
