Moving to TrueNAS and Democratic CSI for Kubernetes Persistent Storage

Posted on by

I read an article about TrueNAS enabling container storage for Kubernetes by using the Democratic CSI driver to provide direct access to the storage system, and jumped right in.

Up until now I was using my own DIY NAS server to provide various services to the homelab environment, including NFS, which worked great to be honest with you, but it did not have a CSI.

Pre-requisites

We are using our Kubernetes homelab to deploy democratic-csi.

You will need a TrueNAS Core server. Note that installation of TrueNAS is beyond the scope of this article.

The Plan

In this article, we are going to do the following:

  1. Configure TrueNAS Core 12.0-U3 to provide NFS services.
  2. Configure democratic-csi for Kubernetes using Helm.
  3. Create Kubernetes persistent volumes.

The IP address of the TrueNAS server is 10.11.1.5.

Our Kubernetes nodes are pre-configured to use NFS, therefore no change is required. If you’re deploying a new set of CentOS servers, make sure to install the package nfs-utils.

Configure TrueNAS Core

A shout-out to Jonathan Gazeley and his blog post that helped me to get TrueNAS configured in no time.

Create a Storage Pool

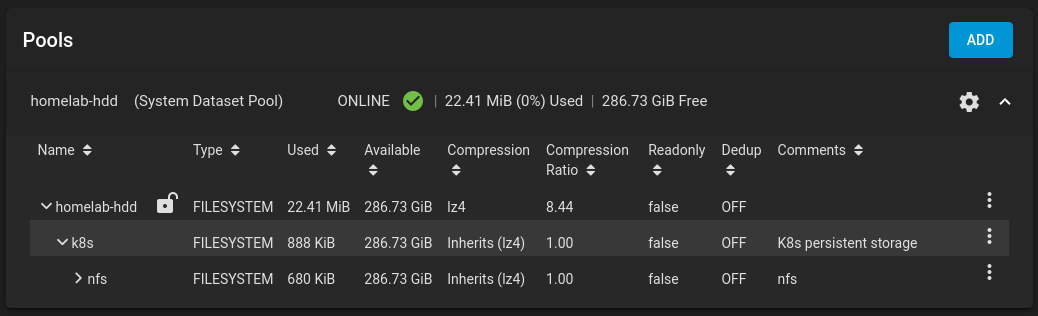

We’ve created a storage pool called homelab-hdd/k8s/nfs.

Enable NFS and SSH Services

We are interested in NFS and SSH, no other service is required. Note that S.M.A.R.T should be enabled by default.

Configure NFS Service

Make sure to enable the following:

  1. Enable NFSv4.
  2. NFSv3 ownership model for NFSv4.

Configure SSH Passwordless Authentication

Kubernetes will require access to the TrueNAS API with a privileged user. For the homelab server, we will use the root user with passwordless authentication.

Generate an SSH keypair:

$ ssh-keygen -t rsa -C [email protected] -f truenas_rsa

$ cat ./truenas_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC5uztUHLU+dYDtj+23MQEpRt/ov4JZG+pw9bKRCbkBKC8aDhxYtJrNyoViGSR4diXORDDH8KA3JCbKVfHKDQhrXy+13aUGOVA/k/oCP/IgQH9spU1QHPCJOCMhIAVzp2lePLzC2ZKcFusFk0mpkCbGTbklt+uLs96+IsrOyhifBgOdmAt7o2FK8H6hl/Wddgk5ARSjPrc10aPxgGo/Gwg4RjGpopOtuRQeHNCC7/RAXzRxJLS7l7BYr/4yI+Gi4kas8sFWx2D0df0c3d/+SM2mccdNRCySywXlgD9tFhf6uCFpfdsnarzMxmH3P0LnxMDWwhisoohIHR3ErzkY4RgX [email protected]

Navigate to Accounts > Users > root and add the public SSH key. Also change the shell to bash.

Verify that you can SSH into the TrueNAS server using the SSH key and the root account:

$ ssh -i ./truenas_rsa [email protected]
Last login: Fri Apr 23 19:47:07 2021
FreeBSD 12.2-RELEASE-p6 f2858df162b(HEAD) TRUENAS

	TrueNAS (c) 2009-2021, iXsystems, Inc.
	All rights reserved.
	TrueNAS code is released under the modified BSD license with some
	files copyrighted by (c) iXsystems, Inc.

	For more information, documentation, help or support, go here:
	http://truenas.com
Welcome to TrueNAS
truenas#

Generate a TrueNAS API Key

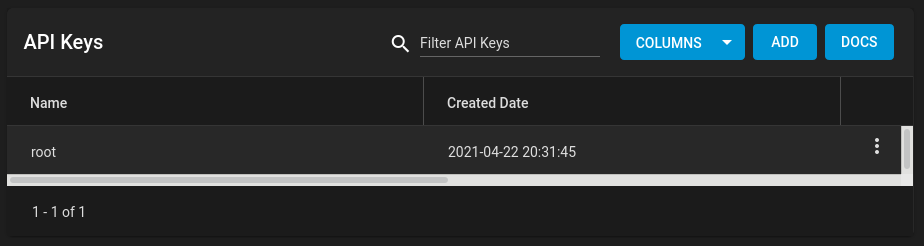

Navigate to settings (cog icon) > API Keys and generate a key. Give it some name, e.g. root. The key will be used to authenitcate with the TrueNAS HTTP server.

Configure Kubernetes democratic-csi

Helm Installation

$ helm repo add democratic-csi https://democratic-csi.github.io/charts/
$ helm repo update
$ helm search repo democratic-csi/

Configure Helm Values File

The content of our file freenas-nfs.yaml can be seen below. Example configuration can be found in democratic-csi’s GitHub repository.

csiDriver:
  name: "org.democratic-csi.nfs"

storageClasses:
- name: freenas-nfs-csi
  defaultClass: false
  reclaimPolicy: Retain
  volumeBindingMode: Immediate
  allowVolumeExpansion: true
  parameters:
    fsType: nfs

  mountOptions:
  - noatime
  - nfsvers=4
  secrets:
    provisioner-secret:
    controller-publish-secret:
    node-stage-secret:
    node-publish-secret:
    controller-expand-secret:

driver:
  config:
    driver: freenas-nfs
    instance_id:
    httpConnection:
      protocol: http
      host: 10.11.1.5
      port: 80
      # This is the API key that we generated previously
      apiKey: 1-fAP3JzEaXXLGyKam8ZnotarealkeyIKJ6nnKUX5ARd5v0pw0cADEkqnH1S079v
      username: root
      allowInsecure: true
      apiVersion: 2
    sshConnection:
      host: 10.11.1.5
      port: 22
      username: root
      # This is the SSH key that we generated for passwordless authentication
      privateKey: |
        -----BEGIN RSA PRIVATE KEY-----
        MIIEogIBAAKCAQEAubs7VBy1PnWA7Y/ttzEBKUbf6L+CWRvqcPWykQm5ASgvGg4c
        [...]
        tl4biLpseFQgV3INtM0NNW4+LlTSAnjApDtNzttX/h5HTBLHyoc=
        -----END RSA PRIVATE KEY-----
    zfs:
      # Make sure to use the storage pool that was created previously
      datasetParentName: homelab-hdd/k8s/nfs/vols
      detachedSnapshotsDatasetParentName: homelab-hdd/k8s/nfs/snaps
      datasetEnableQuotas: true
      datasetEnableReservation: false
      datasetPermissionsMode: "0777"
      datasetPermissionsUser: root
      datasetPermissionsGroup: wheel
    nfs:
      shareHost: 10.11.1.5
      shareAlldirs: false
      shareAllowedHosts: []
      shareAllowedNetworks: []
      shareMaprootUser: root
      shareMaprootGroup: wheel
      shareMapallUser: ""
      shareMapallGroup: ""

Install the democratic-csi Helm Chart

$ helm upgrade \
  --install \
  --create-namespace \
  --values freenas-nfs.yaml \
  --namespace democratic-csi \
  zfs-nfs democratic-csi/democratic-csi

Verify that pods are up and running:

$ kubectl -n democratic-csi get pods
NAME                                                 READY   STATUS    RESTARTS   AGE
zfs-nfs-democratic-csi-controller-5dbfcb7896-89tqv   4/4     Running   0          39h
zfs-nfs-democratic-csi-node-6nz29                    3/3     Running   0          39h
zfs-nfs-democratic-csi-node-bdt47                    3/3     Running   0          39h
zfs-nfs-democratic-csi-node-c7p6h                    3/3     Running   0          39h

$ kubectl get sc
NAME              PROVISIONER              RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
freenas-nfs-csi   org.democratic-csi.nfs   Retain          Immediate           true                   39h

Create Persistent Volumens

We are going to create a persistent volume for Grafana. See the content of the file grafana-pvc.yml below.

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: nfs-pvc-grafana
  namespace: monitoring
  labels:
    app: grafana
  annotations:
    volume.beta.kubernetes.io/storage-class: "freenas-nfs-csi"
spec:
  storageClassName: freenas-nfs-csi
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 500Mi

Create a persistent volume claim:

$ kubectl apply -f ./grafana-pvc.yml

Verify:

$ kubectl -n monitoring get pvc -l app=grafana
NAME                   STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS      AGE
nfs-pvc-grafana        Bound    pvc-371089f8-3c6e-49c6-b6d7-bf2b8ec16108   500Mi      RWO            freenas-nfs-csi   18h
