Configure Active/Passive NFS Server on a Pacemaker Cluster with Puppet

We’re going to use Puppet to install Pacemaker/Corosync and configure an NFS cluster.

For instructions on how to compile fence_pve on CentOS 7, scroll to the bottom of the page.

This article is part of the Homelab Project with KVM, Katello and Puppet series.

Homelab

We have two CentOS 7 servers installed which we want to configure as follows:

storage1.hl.local (10.11.1.15) – Pacemaker cluster node
storage2.hl.local (10.11.1.16) – Pacemaker cluster node

SELinux set to enforcing mode.

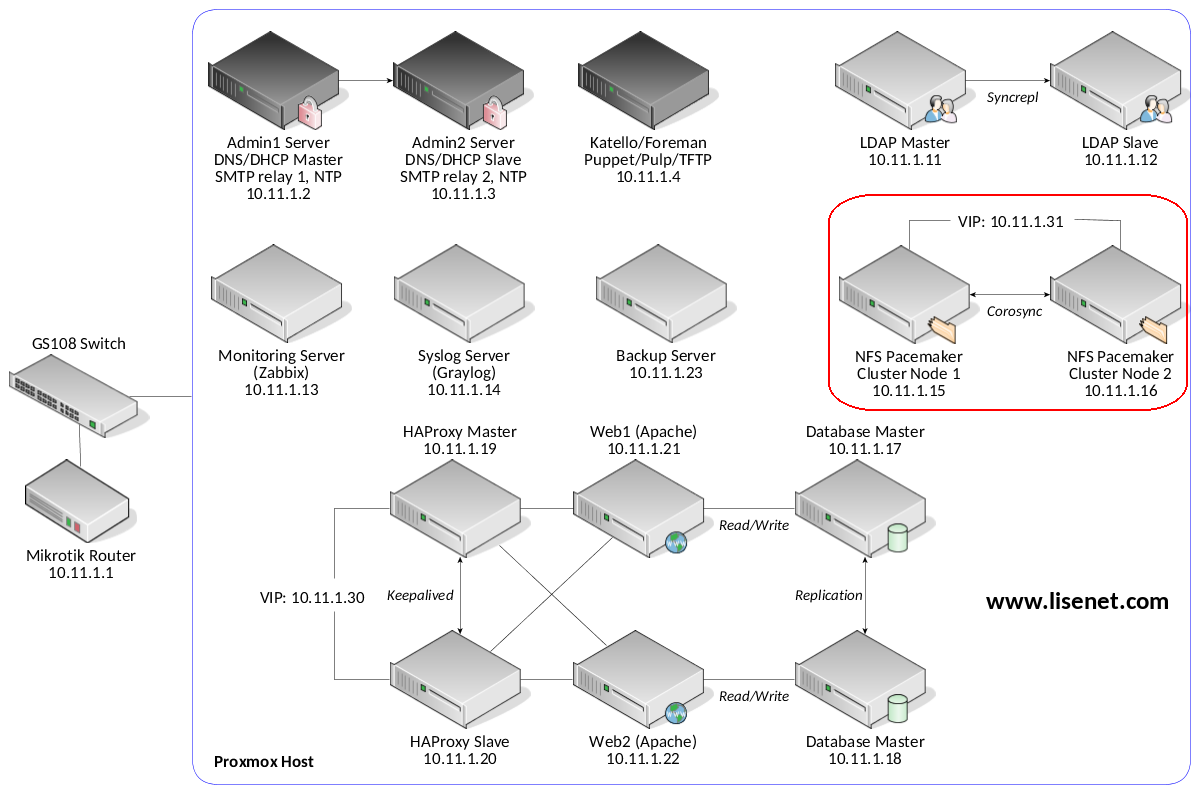

See the image below to identify the homelab part this article applies to.

Cluster Requirements

To configure the cluster, we are going to need the following:

  1. A virtual IP address, required for the NFS server.
  2. Shared storage for the NFS nodes in the cluster.
  3. A power fencing device for each node of the cluster.

The virtual IP is 10.11.1.31 (with the DNS name of nfsvip.hl.local).

With regards to shared storage, while I agree that iSCSI would be ideal, the truth is that “we don’t have that kind of money“. We will have to make it with a shared disk among different VMs on same Proxmox host.

In terms of fencing, as mentioned earlier, Proxmox does not use libvirt, therefore Pacemaker clusters cannot be fenced by using fence-agents-virsh. There is fence_pve available, but we won’t find it in CentOS/RHEL. We’ll need to compile it from source.

Proxmox and Disk Sharing

I was unable to find a WebUI way to add an existing disk to another VM. Proxmox forum was somewhat helpful, and I ended up manually editing the VM’s config file since the WebUI would not let me assign the same disk to two VMs.

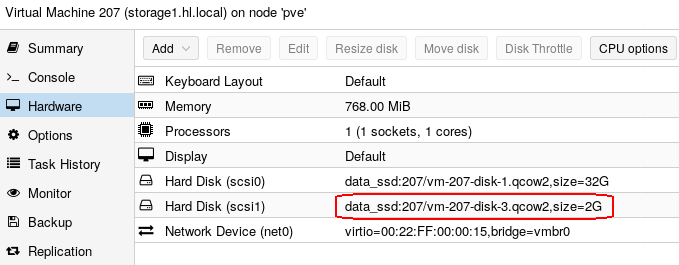

Take a look at the following image, showing two disks attached to the storage1.hl.local node:

We want to use the smaller (2GB) disk for NFS.

The VM ID of the storage2.hl.local node is 208 (see here), therefore we can add the disk by editing the node’s configuration file.

# cat /etc/pve/qemu-server/208.conf
boot: cn
bootdisk: scsi0
cores: 1
hotplug: disk,cpu
memory: 768
name: storage2.hl.local
net0: virtio=00:22:FF:00:00:16,bridge=vmbr0
onboot: 1
ostype: l26
scsi0: data_ssd:208/vm-208-disk-1.qcow2,size=32G
scsi1: data_ssd:207/vm-207-disk-3.qcow2,size=2G
scsihw: virtio-scsi-pci
smbios1: uuid=030e28da-72e6-412d-be77-a79f06862351
sockets: 1
startup: order=208

The disk that we’ve added is scsi1. Note how it references the VM ID 207.

The disk will be visible on both nodes as /dev/disk/by-id/scsi-0QEMU_QEMU_HARDDISK_drive-scsi1.

Configuration with Puppet

Puppet master runs on the Katello server.

Puppet Modules

We use puppet-corosync Puppet module to configure the server. We also use puppetlabs-accounts for Linux account creation.

Please see the module documentation for features supported and configuration options available.

Configure Firewall

It is essential to ensure that Pacemaker servers can talk to each other. The following needs applying to both cluster nodes:

firewall { '007 accept HA cluster requests':
  dport  => ['2224', '3121', '5403', '21064'],
  proto  => 'tcp',
  source => '10.11.1.0/24',
  action => 'accept',
}->
firewall { '008 accept HA cluster requests':
  dport  => ['5404', '5405'],
  proto  => 'udp',
  source => '10.11.1.0/24',
  action => 'accept',
}->
firewall { '009 accept NFS requests':
  dport  => ['2049'],
  proto  => 'tcp',
  source => '10.11.1.0/24',
  action => 'accept',
}->
firewall { '010 accept TCP mountd requests':
  dport  => ['20048'],
  proto  => 'tcp',
  source => '10.11.1.0/24',
  action => 'accept',
}->
firewall { '011 accept UDP mountd requests':
  dport  => ['20048'],
  proto  => 'udp',
  source => '10.11.1.0/24',
  action => 'accept',
}->
firewall { '012 accept TCP rpc-bind requests':
  dport  => ['111'],
  proto  => 'tcp',
  source => '10.11.1.0/24',
  action => 'accept',
}->
firewall { '013 accept UDP rpc-bind requests':
  dport  => ['111'],
  proto  => 'udp',
  source => '10.11.1.0/24',
  action => 'accept',
}

Create Apache User and NFS Mountpoint

Before we configure the cluster, we need to make sure that we have the nfs-utils package installed and that the nfs-lock service is disabled – it will be managed by pacemaker.

The Apache user is created in order to match ownership and allow web servers to write to the NFS share.

The following needs applying to both cluster nodes:

package { 'nfs-utils': ensure => 'installed' }->
service { 'nfs-lock':  enable => false }->
accounts::user { 'apache':
  comment   => 'Apache',
  uid       => '48',
  gid       => '48',
  shell     => '/sbin/nologin',
  password  => '!!',
  home      => '/usr/share/httpd',
  home_mode => '0755',
  locked    => false,
}->
file {'/nfsshare':
  ensure => 'directory',
  owner  => 'root',
  group  => 'root',
  mode   => '0755',
}

Configure Pacemaker/Corosync on storage1.hl.local

We disable STONITH initially because the fencing agent fence_pve is simply not available yet. We will compile it later, however, it’s not required in order to get the cluster into an operational state.

We use colocations to keep primitives together. While colocation defines that a set of primitives must live together on the same node, order definitions will define the order of which each primitive is started. This is importat, as we want to make sure that we start cluster resources in the correct order.

Note how we configure NFS exports to be available to two specific clients only: web1.hl.local and web2.hl.local. In reality there is no need for any other homelab server to have access to the NFS share.

We make the apache user the owner of the NFS share, and export it with no_all_squash.

class { 'corosync':
  authkey        => '/etc/puppetlabs/puppet/ssl/certs/ca.pem',
  bind_address   => $::ipaddress,
  cluster_name   => 'nfs_cluster',
  enable_secauth => true,
  enable_corosync_service  => true,
  enable_pacemaker_service => true,
  set_votequorum => true,
  quorum_members => [ 'storage1.hl.local', 'storage2.hl.local' ],
}
corosync::service { 'pacemaker':
  ## See: https://wiki.clusterlabs.org/wiki/Pacemaker
  version => '1.1',
}->
cs_property { 'stonith-enabled':
  value   => 'false',
}->
cs_property { 'no-quorum-policy':
  value   => 'ignore',
}->
cs_primitive { 'nfsshare':
  primitive_class => 'ocf',
  primitive_type  => 'Filesystem',
  provided_by     => 'heartbeat',
  parameters      => { 'device' => '/dev/disk/by-id/scsi-0QEMU_QEMU_HARDDISK_drive-scsi1', 'directory' => '/nfsshare', 'fstype' => 'ext4' },
}->
cs_primitive { 'nfsd':
  primitive_class => 'ocf',
  primitive_type  => 'nfsserver',
  provided_by     => 'heartbeat',
  parameters      => { 'nfs_shared_infodir' => '/nfsshare/nfsinfo' },
  require         => Cs_primitive['nfsshare'],
}->
cs_primitive { 'nfsroot1':
  primitive_class => 'ocf',
  primitive_type  => 'exportfs',
  provided_by     => 'heartbeat',
  parameters      => { 'clientspec' => 'web1.hl.local', 'options' => 'rw,async,no_root_squash,no_all_squash', 'directory' => '/nfsshare', 'fsid' => '0' },
  require         => Cs_primitive['nfsd'],
}->
cs_primitive { 'nfsroot2':
  primitive_class => 'ocf',
  primitive_type  => 'exportfs',
  provided_by     => 'heartbeat',
  parameters      => { 'clientspec' => 'web2.hl.local', 'options' => 'rw,async,no_root_squash,no_all_squash', 'directory' => '/nfsshare', 'fsid' => '0' },
  require         => Cs_primitive['nfsd'],
}->
cs_primitive { 'nfsvip':
  primitive_class => 'ocf',
  primitive_type  => 'IPaddr2',
  provided_by     => 'heartbeat',
  parameters      => { 'ip' => '10.11.1.31', 'cidr_netmask' => '24' },
  require         => Cs_primitive['nfsroot1','nfsroot2'],
}->
cs_colocation { 'nfsshare_nfsd_nfsroot_nfsvip':
   primitives => [
    [ 'nfsshare', 'nfsd', 'nfsroot1', 'nfsroot2', 'nfsvip' ],
}->
cs_order { 'nfsshare_before_nfsd':
  first   => 'nfsshare',
  second  => 'nfsd',
  require => Cs_colocation['nfsshare_nfsd_nfsroot_nfsvip'],
}->
cs_order { 'nfsd_before_nfsroot1':
  first   => 'nfsd',
  second  => 'nfsroot1',
  require => Cs_colocation['nfsshare_nfsd_nfsroot_nfsvip'],
}->
cs_order { 'nfsroot1_before_nfsroot2':
  first   => 'nfsroot1',
  second  => 'nfsroot2',
  require => Cs_colocation['nfsshare_nfsd_nfsroot_nfsvip'],
}->
cs_order { 'nfsroot2_before_nfsvip':
  first   => 'nfsroot2',
  second  => 'nfsvip',
  require => Cs_colocation['nfsshare_nfsd_nfsroot_nfsvip'],
}->
file {'/nfsshare/uploads':
  ensure => 'directory',
  owner  => 'apache',
  group  => 'root',
  mode   => '0755',
}

Configure Pacemaker/Corosync on storage2.hl.local

class { 'corosync':
  authkey        => '/etc/puppetlabs/puppet/ssl/certs/ca.pem',
  bind_address   => $::ipaddress,
  cluster_name   => 'nfs_cluster',
  enable_secauth => true,
  enable_corosync_service  => true,
  enable_pacemaker_service => true,
  set_votequorum => true,
  quorum_members => [ 'storage1.hl.local', 'storage2.hl.local' ],
}
corosync::service { 'pacemaker':
  version => '1.1',
}->
cs_property { 'stonith-enabled':
  value   => 'false',
}

Cluster Status

If all went well, we should have our cluster up and running at this point.

[root@storage1 ~]# pcs status
Cluster name: nfs_cluster
Stack: corosync
Current DC: storage2.hl.local (version 1.1.16-12.el7_4.8-94ff4df) - partition with quorum
Last updated: Sun Apr 29 17:04:50 2018
Last change: Sun Apr 29 16:56:25 2018 by root via cibadmin on storage1.hl.local

2 nodes configured
5 resources configured

Online: [ storage1.hl.local storage2.hl.local ]

Full list of resources:

 nfsshare	(ocf::heartbeat:Filesystem):	Started storage1.hl.local
 nfsd	(ocf::heartbeat:nfsserver):	Started storage1.hl.local
 nfsroot1	(ocf::heartbeat:exportfs):	Started storage1.hl.local
 nfsroot2	(ocf::heartbeat:exportfs):	Started storage1.hl.local
 nfsvip	(ocf::heartbeat:IPaddr2):	Started storage1.hl.local

Daemon Status:
  corosync: active/enabled
  pacemaker: active/enabled
  pcsd: inactive/disabled
[root@storage2 ~]# pcs status
Cluster name: nfs_cluster
Stack: corosync
Current DC: storage2.hl.local (version 1.1.16-12.el7_4.8-94ff4df) - partition with quorum
Last updated: Sun Apr 29 17:05:04 2018
Last change: Sun Apr 29 16:56:25 2018 by root via cibadmin on storage1.hl.local

2 nodes configured
5 resources configured

Online: [ storage1.hl.local storage2.hl.local ]

Full list of resources:

 nfsshare	(ocf::heartbeat:Filesystem):	Started storage1.hl.local
 nfsd	(ocf::heartbeat:nfsserver):	Started storage1.hl.local
 nfsroot1	(ocf::heartbeat:exportfs):	Started storage1.hl.local
 nfsroot2	(ocf::heartbeat:exportfs):	Started storage1.hl.local
 nfsvip	(ocf::heartbeat:IPaddr2):	Started storage1.hl.local

Daemon Status:
  corosync: active/enabled
  pacemaker: active/enabled
  pcsd: inactive/disabled

Test cluster failover by putting the active node into standby:

[root@storage1 ~]# pcs node standby

Services should become available on the other cluster node:

[root@storage2 ~]# pcs status
Cluster name: nfs_cluster
Stack: corosync
Current DC: storage2.hl.local (version 1.1.16-12.el7_4.8-94ff4df) - partition with quorum
Last updated: Sun Apr 29 17:06:36 2018
Last change: Sun Apr 29 16:56:25 2018 by root via cibadmin on storage1.hl.local

2 nodes configured
5 resources configured

Node storage1.hl.local: standby
Online: [ storage2.hl.local ]

Full list of resources:

 nfsshare	(ocf::heartbeat:Filesystem):	Started storage2.hl.local
 nfsd	(ocf::heartbeat:nfsserver):	Started storage2.hl.local
 nfsroot1	(ocf::heartbeat:exportfs):	Started storage2.hl.local
 nfsroot2	(ocf::heartbeat:exportfs):	Started storage2.hl.local
 nfsvip	(ocf::heartbeat:IPaddr2):	Started storage2.hl.local

Daemon Status:
  corosync: active/enabled
  pacemaker: active/enabled
  pcsd: inactive/disabled

Do showmount on the virtual IP address:

[root@storage2 ~]# showmount -e 10.11.1.31
Export list for 10.11.1.31:
/nfsshare web1.hl.local,web2.hl.local

Compile fence_pve on CentOS 7

This is where the automated part ends I’m afraid, however, there is nothing that stops you from putting the manual steps below into a Puppet manifest.

Install Packages

# yum install git gcc make automake autoconf libtool \
  pexpect python-requests

Download Source and Compile

# git clone https://github.com/ClusterLabs/fence-agents.git

Note the configuration part, we are interested in compiling one fencing agent only, fence_pve.

# cd fence-agents/
# ./autogen.sh
# ./configure --with-agents=pve
# make && make install

Verify:

# fence_pve --version
4.1.1.51-6e6d

Configure Pacemaker to Use fence_pve

Big thanks to Igor Cicimov’s blog post which helped me to get it working with minimal effort.

To test the fencing agent, do the following:

[root@storage1 ~]# fence_pve --ip=10.11.1.5 --nodename=pve \
  --username=root@pam --password=passwd \
  --plug=208 --action=off

Where 10.11.1.5 is the IP of the Proxmox hypervisor, pve is the name of the Proxmox node, and the plug is the VM ID. In this case we fenced the storage2.hl.local node.

To configure Pacemaker, we can create two STONITH configurations, one for each node that we want to be able to fence.

[root@storage1 ~]# pcs stonith create my_proxmox_fence207 fence_pve \
  ipaddr="10.11.1.5" inet4_only="true" vmtype="qemu" \
  login="root@pam" passwd="passwd" \
  node_name="pve" delay="15" \
  port="207" \
  pcmk_host_check=static-list \
  pcmk_host_list="storage1.hl.local"
[root@storage1 ~]# pcs stonith create my_proxmox_fence208 fence_pve \
  ipaddr="10.11.1.5" inet4_only="true" vmtype="qemu" \
  login="root@pam" passwd="passwd" \
  node_name="pve" delay="15" \
  port="208" \
  pcmk_host_check=static-list \
  pcmk_host_list="storage2.hl.local"

Verify:

[root@storage1 ~]# stonith_admin -L
 my_proxmox_fence207
 my_proxmox_fence208
2 devices found
[root@storage1 ~]# pcs status
Cluster name: nfs_cluster
Stack: corosync
Current DC: storage1.hl.local (version 1.1.16-12.el7_4.8-94ff4df) - partition with quorum
Last updated: Sun Apr 29 17:50:59 2018
Last change: Sun Apr 29 17:50:55 2018 by root via cibadmin on storage1.hl.local

2 nodes configured
7 resources configured

Online: [ storage1.hl.local ]
OFFLINE: [ storage2.hl.local ]

Full list of resources:

 nfsshare	(ocf::heartbeat:Filesystem):	Started storage1.hl.local
 nfsd	(ocf::heartbeat:nfsserver):	Started storage1.hl.local
 nfsroot1	(ocf::heartbeat:exportfs):	Started storage1.hl.local
 nfsroot2	(ocf::heartbeat:exportfs):	Started storage1.hl.local
 nfsvip	(ocf::heartbeat:IPaddr2):	Started storage1.hl.local
 my_proxmox_fence207	(stonith:fence_pve):	Started storage1.hl.local
 my_proxmox_fence208	(stonith:fence_pve):	Started storage1.hl.local

Daemon Status:
  corosync: active/enabled
  pacemaker: active/enabled
  pcsd: inactive/disabled

Note how the storage2.hl.local node is down, because we’ve fenced it.

If you decide to use test configuration, do not forget to stop the Puppet agent on the cluster nodes as it will disable STONITH (we set stonith-enabled to false in the manifest).

For more info, do the following:

# pcs stonith describe fence_pve

This will give you a list of other STONITH options available.

One thought on “Configure Active/Passive NFS Server on a Pacemaker Cluster with Puppet

  1. Hello,

    I have followed your steps to setup the fence_pve agent on rhel 8.4
    Version: 4.14.0.13-2d9c
    I can fence nodes with the following command, but I cannot fence them using pacemaker:

    fence_pve -a 192.168.1.3 -A -l test2@pve -p secret -n 204 –ssl-insecure -o reboot
    I enabled the verbose mode for the fencing device and this is the relevant section from the logs:

    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ > GET /api2/json/nodes/ich-srv-01/qemu/lab5/status/current HTTP/1.1
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ Host: 192.168.1.3:8006
    Jun 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ User-Agent: PycURL/7.43.0.2 libcurl/7.61.1 OpenSSL/1.1.1g zlib/1.2.11 brotli/1.0.6 libidn2 ].2.0 libpsl/0.20.2 (+libidn2/2.2.0) libssh/0.9.4/openssl/zlib nghttp2/1.33.0
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ Accept: */*
    Jun 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ Cookie: PVEAuthCookie=PVE:test2@pve:66689F0A::DZ2sVOm4QD/9CIzGD3TtVQIh6MUYa+sJvASCOg4hLSts9hQhDtqlwHriwesNVbKOFAl5yA1GW5yClEu9xacwLP5uJhwjc6dq0EvxstWKiaF9A0yZ+m4M/DYDUYqSOSp2+UthoKq42Aa+8msGe/OiBMEncob7t5pJYgJPS2F2gvbWqF9XBeg4FraqZ0Ag2Y+zr2Tgxq97n8Os++PrwEDkQuDNUWd4ylGTuuk+fcvlnMr30+Ww7lknoH7gclHDVHgM3KYnPAB2dc7METIioITAN5LOY7c/DnPGHnyYSDY9J5hf/kE/0ejODlTHXcqNR/pJcXTbmN1AGqgS8ce+NNctjw==; version=
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ CSRFPreventionToken: 66689F0A:1tVSSATItHTud3twPmJC6vAxZFRvBU18qFdGJwhm7Bs
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ < HTTP/1.1 400 Parameter verification failed.
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ < Cache-Control: max-age=0
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ < Connection: close
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ < Date: Tue, 11 Jun 2024 19:01:30 GMT
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ < Pragma: no-cache
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ < Server: pve-api-daemon/3.0
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ < Content-Length: 76
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ < Content-Type: application/json;charset=UTF-8
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ < Expires: Tue, 11 Jun 2024 19:01:30 GMT
    ]n 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ <
    Jun 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ * Closing connection 0 ]
    Jun 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ 2024-06-11 22:01:30,734 DEBUG: RESULT [400]: {"errors":{"vmid":"type check ('integer') failed – got 'lab5'"},"data":null} ]
    Jun 11 22:01:30 lab4.localdomain pacemaker-fenced [51707] (log_action) warning: fence_pve[57039] stderr: [ 2024-06-11 22:01:30,734 ERROR: Failed: Unable to obtain correct plug status or plug is not available ]

    Here is the stonith config:

    [root@lab4 tests]# pcs stonith config
    Resource: fence_lab5 (class=stonith type=fence_pve)
    Attributes: fence_lab5-instance_attributes
    ip=192.168.1.3
    password=secret
    pcmk_host_check=static-list
    pcmk_host_list=lab5
    plug=204
    pve_node_auto=true
    ssl_insecure=true
    username=test2@pve
    verbose=yes
    vmtype=qemu
    Operations:
    monitor: fence_lab5-monitor-interval-60s
    interval=60s

    [root@lab4 tests]# pcs stonith fence lab5
    Error: unable to fence 'lab5'
    stonith_admin: Couldn't fence lab5: No data available

    I can confirm that the vmid is 100% correct.
    Can you please let me know if you have any thoughts about this?
    Should this be raised as a bug to clusterlabs?

Leave a Reply

Your email address will not be published. Required fields are marked *
